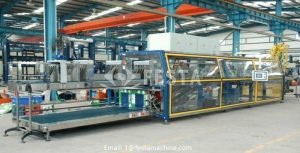

Cardboard entry mode: upward, downward and lateral. Action method: one-piece type, drop type. Advantages– cardboard– hot melt adhesive– smaller area of paperboard, saving materials and costs Automatic one-piece carton wrapping machine. Advantages: 1) Simple operation and convenient maintenance. 2) Remote diagnosis and control system. 3) Stable performance, carton forming and

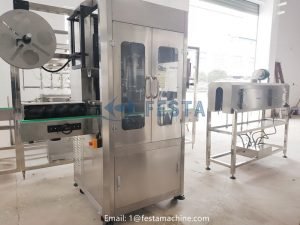

Sleeve Labeling Machine Working principle: the machine uses rolls of label, the label is transmitted to the top of the bottle through the conveyor, and the label is expanded and formed by the sleeve. After the sensor determines the correct position of the label paper, the cutter automatically cuts off

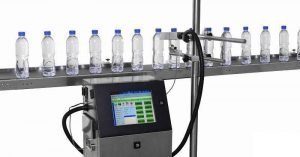

Date Code Printer Major brands: Import: Domino, widely used in electronics industry, Videojet, Markem-Imaje, Hitachi, etc. Domestic: Shenou, Ledejie, Yinma, Konohua, Saiteng, etc. Cooperation between China and the West: e-code, Sylvie, etc. Date code printer is mainly divided into ink-jet printer and laser-jet printer, our company will choose the type

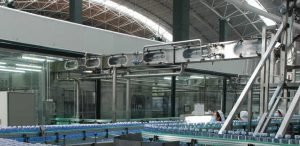

The bottle cap sterilization is divided into dry type (medium pressure UV, hydrogen peroxide + steam atomization) sterilization and wet type sterilization. Our company mainly adopts wet type cap sterilization: spray type-straight line type; immersion type-aseptic cold filling (disc sterilizer-bottle cap spiral rotation, sterilization into disinfectant) Medium temperature ultra clean

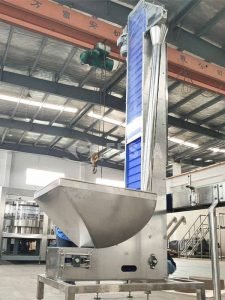

Classification of Cap Elevators and their advantages and disadvantages 1、Cap elevator & sorter How it works: use a belt to transport the bottle cap upward, and use a protruding Radian in the picture to make the back bottle cap fall due to gravity. Advantages: no need separate cap sorter and

Classification and Characteristics of Bottle Rinsing Machines Bottle Rinsing Machine: The clean water is distributed to the bottle washing area through the water distribution plate, and the rinsing nozzle are evenly distributed in the bottle washing area to ensure a uniform water supply in each station. Rising Nozzle: Single rinsing

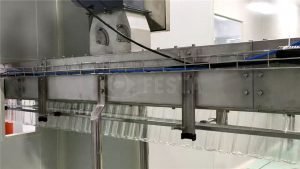

The Working Principle of Air Conveyor The air conveyor is mainly used in the automatic filling production line of PET bottled beverage or water, which is connected in the middle of bottle blowing machine, un-palletizing machine, bottle conveying table and filling machine. Using the wind as the driving force, the

Recently, FESTA customized 12000BPH (500ml) ultra-clean 4 in 1 beverage filling system was shipped to Zhejiang. The machine integrates disinfectant bottle rinsing, aseptic water bottle rinsing, ultra-clean filling and clean sealing machine. All equipment are manufactured with high configuration and can be customized according to customer requirements. The filling machine

Principle of bottle unscrambler 1. Push type: empty bottle hopper (detection device: small amount of empty bottle automatically adds bottles, too many bottles are easy to squeeze and deform)-empty bottle lifting (intermittent work)-bottle parachute (umbrella tower)-push mechanism-drop bottle trough (finishing bottle shape)-(elimination mechanism). 2. Slide bar type: the difference between

1）Bottle Blow Molding Procedure：One-step and two-step bottle blowing molding machine （1）One step method：Japan Nissei、Italy SIPA； Advantages: From the PET resin to the bottle preform, the bottle preform does not need cooling, heating and can save energy. Disadvantages: speed is not fast, high-speed bottle blowing is not good, Max: Nissei–10000BPH, SIPA–24000BPH.
