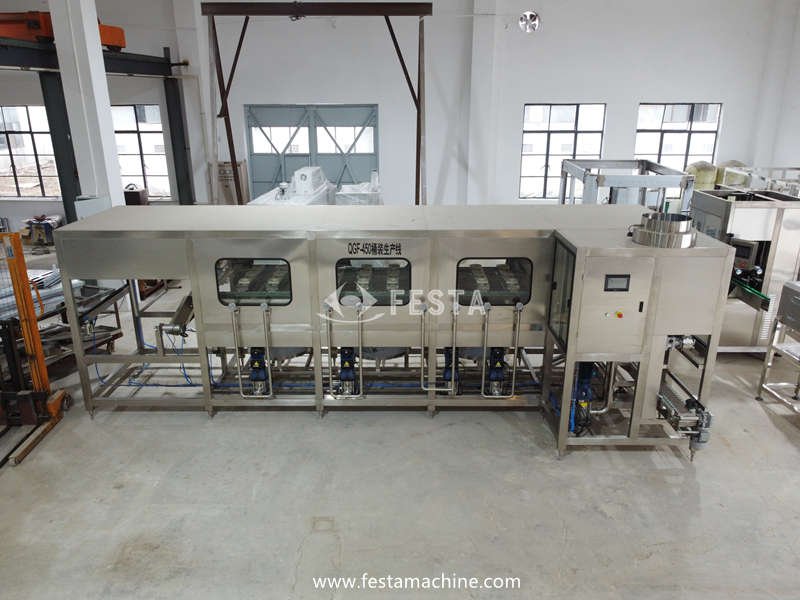

QGF-450 5 Gallon Washing Filling Capping Machine
Production Capacity: 400-450BPH
Main Material: Food grade stainless steel 304
Control Mode: Intelligent PLC control with Touch Screen
Suitable Bottle: 5 gallon jar bottle
Benifit of FESTA QGF-450 5 Gallon Filler
When you buy our QGF- 450 five-gallon filling machine, you will get our one-stop service, such as factory layout design, reasonable suggestions, equipment installation guidance, employee induction training, etc.
We will help you guide the stable operation of your 5-gallon factory equipment.
QGF-450 ‘s standard production capacity is 450BPH, with three bottle washing tunnels, and the filling head can be filled with gravity or mechanical filling technology.
There will be no waste of pure water caused by liquid overflow during filling.
The specially designed 5-gallon bottle washing machine adopts a fully closed structure with acid and lye cleaning area and pure water cleaning area.
Make sure every corner of the 5-gallon bottle can be cleaned.
Machine Model | QGF-450 |
Production Capacity | 400-450 bottles per hour |
Suitable Container | 3 gallon / 5 gallon |
Washing Nozzle | 36 |
Filling Nozzle | 3 |
Capping Type | Chain Pressing |
Main Power | 4kw |
Air Consumption | 0.6－0.8Mpa 450L/m |
Washing Water Consumption | Washing water:3000kg/H the disinfectant is recycle use |
Filling Water Consumption | 6000-8000kg per hour |
Dimensions | 4800×1200×1800mm |
Weight | 800kg |
